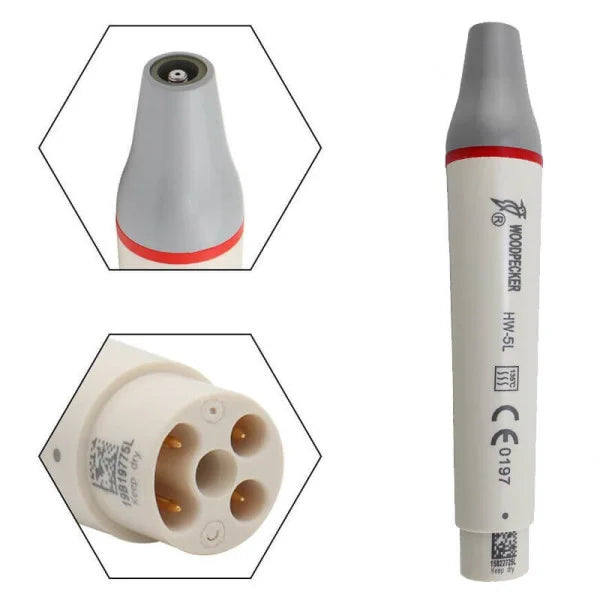

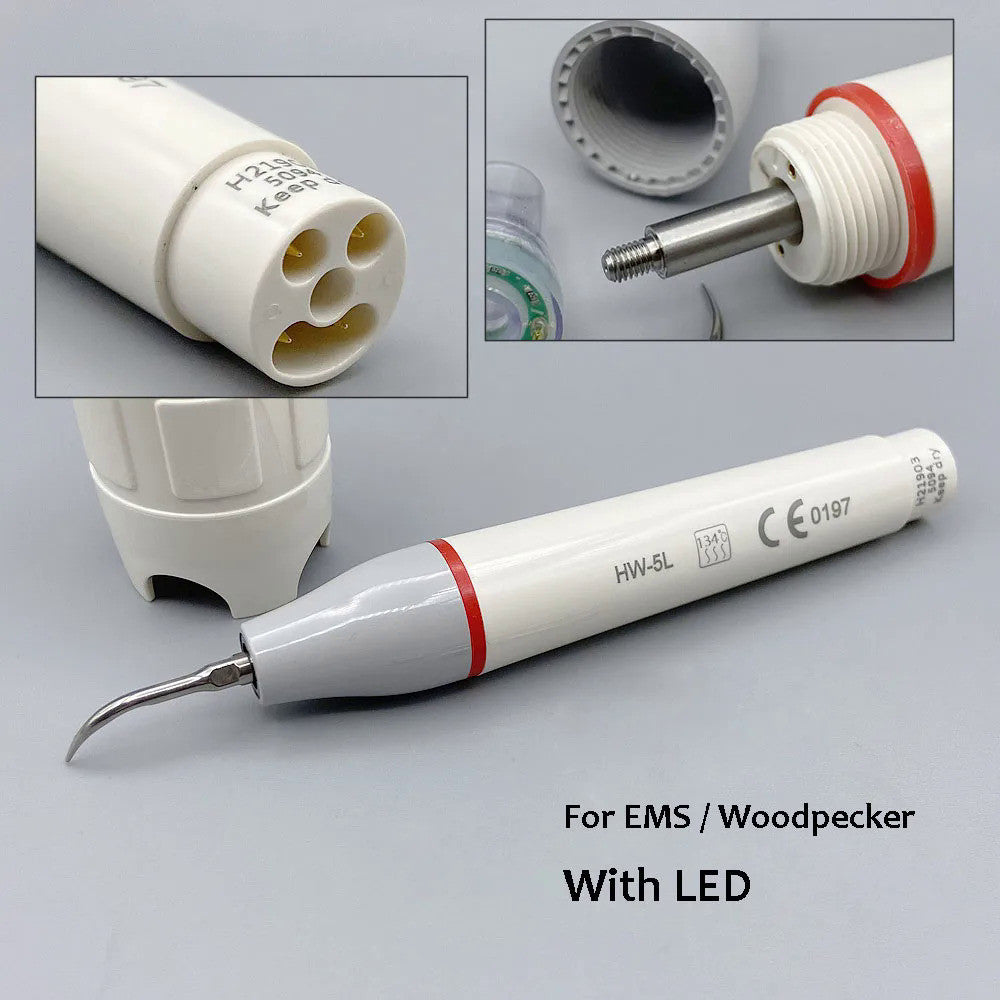

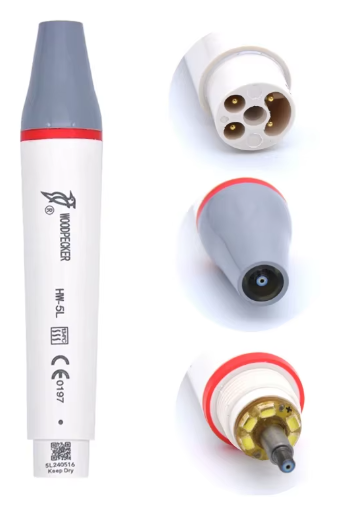

Woodpecker HW‑5L LED – Ultrasonic Scaler Handpiece (Detachable)

Powerful, compact and illuminated – for improved clinical visibility

✅ Key Features & Benefits

• Integrated LED optics : With LED light at the tip for optimal illumination of the treatment area – no shadows, increased precision

• Detachable design : Detachable handpiece for easy handling, cleaning and replacement

• Autoclavable : Can be sterilized under high pressure and temperature (≤ 135 °C and 0.22 MPa) without losing function

• Wide compatibility : Fits Woodpecker UDS‑LED models (UDS‑A, E, L, K, P, N2, N3) as well as EMS tips

• Compact & light : Only approx. 105 mm long and 18.9 mm in diameter – easy to handle with ergonomic comfort

• FCC/CE/FDA approved : Complies with international safety and hygiene standards

⚙️ Technical Specification

🎯 Recommended For

The Woodpecker HW‑5L LED handpiece is suitable for both supragingival and subgingival scaling. It is ideal for clinicians who want high precision and easy access to tight areas combined with power and LED light in a lightweight, ergonomic format.

🛠 Use and Maintenance

1. Secure the scaler tip with the Woodpecker torque wrench (TW‑1L)

2. Adjust LED and water flow

3. After use: rinse for 30 seconds, disassemble and autoclave up to 135°C

4. Dry before installing tip and connection – extends service life

In short: The Woodpecker HW‑5L LED is a compact, flexible handpiece with light, compatible with both Woodpecker and EMS tips. A preferred solution for precise, ergonomic and visible treatment in all clinic settings.
