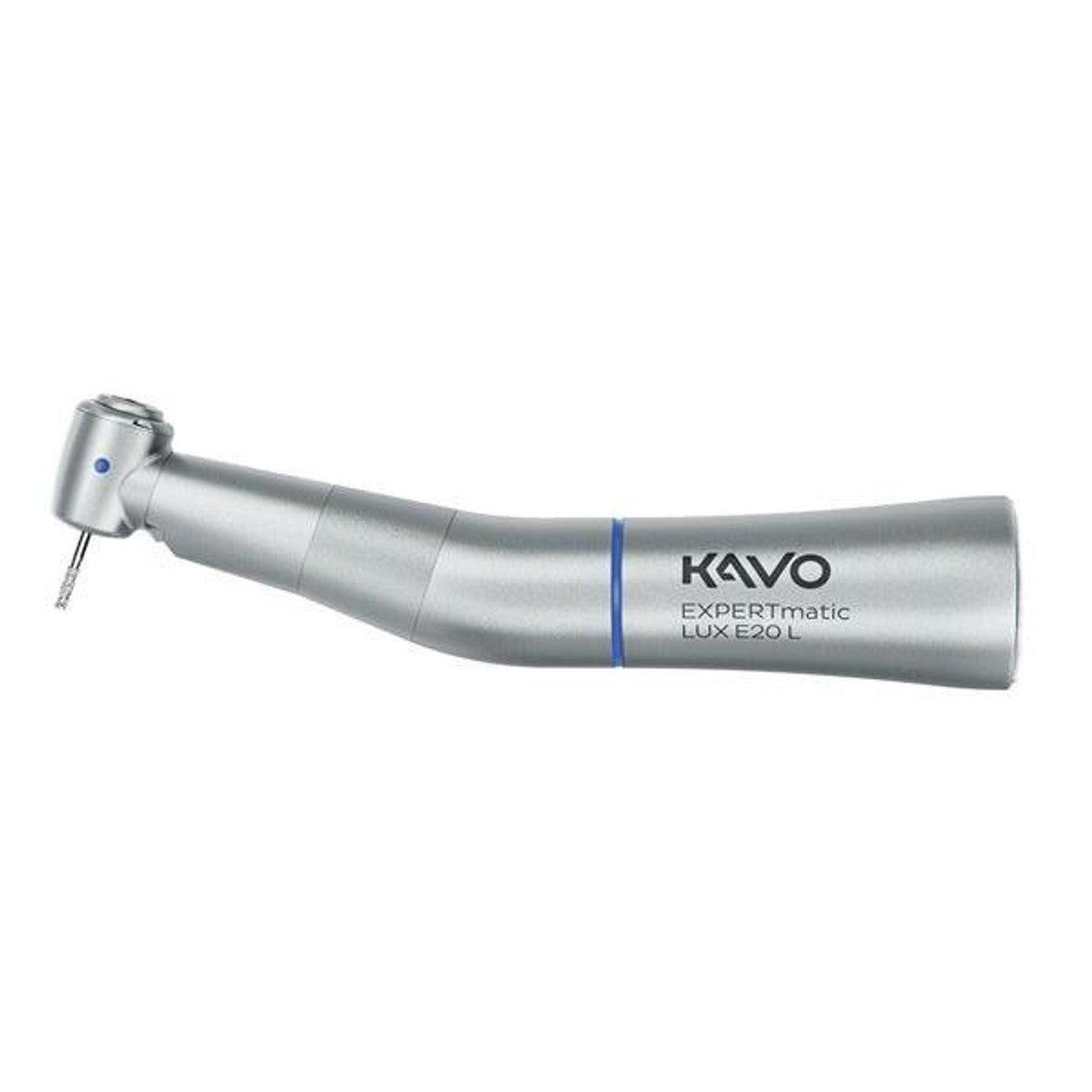

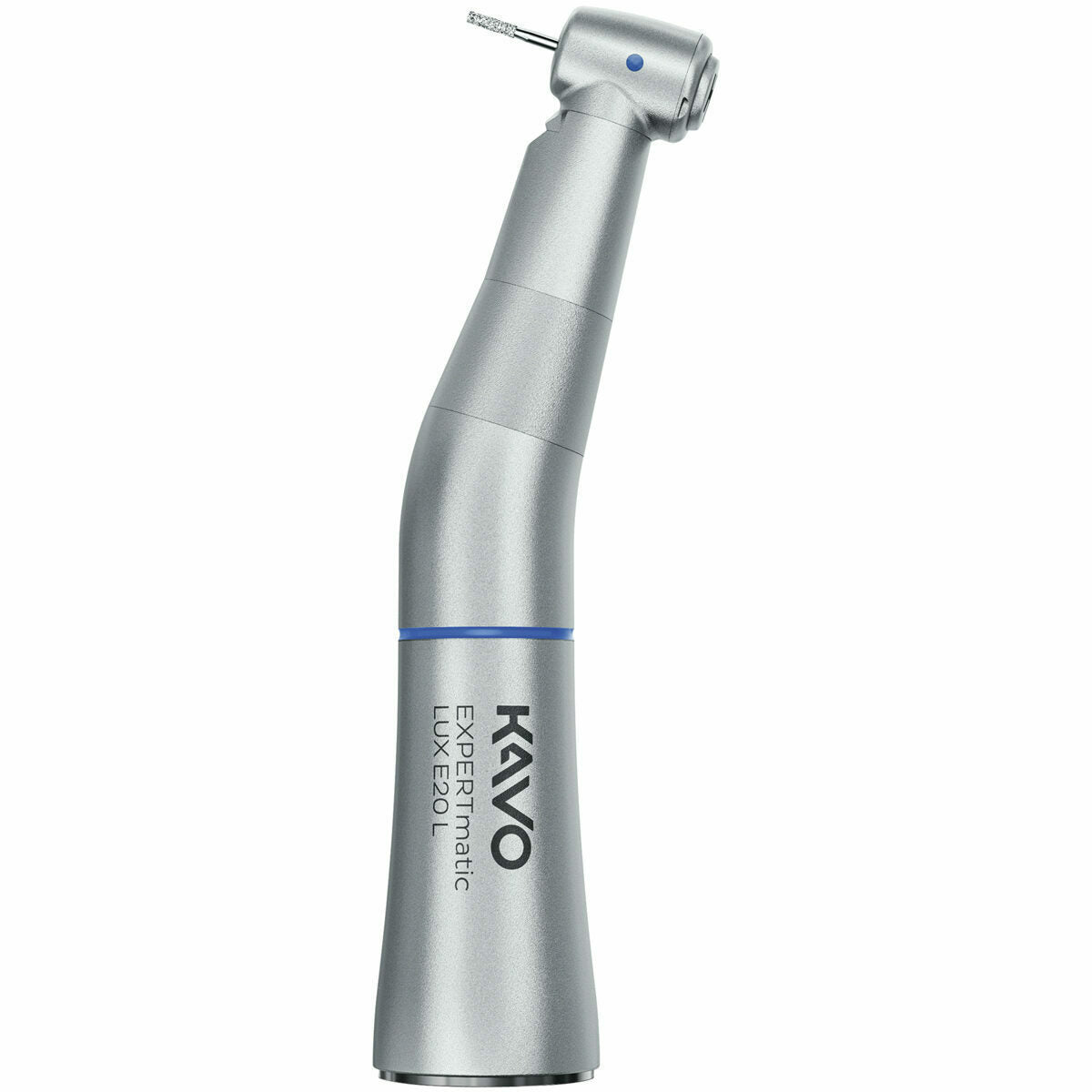

KaVo EXPERTmatic LUX E20L – 1:1 Contra‑Angle Handpiece with LED optics
KaVo EXPERTmatic LUX E20L – 1:1 Contra‑Angle Handpiece with LED optics
Couldn't load pickup availability
Precise, bright and hygienic – ideal for low-speed procedures
✅ Short description
The KaVo EXPERTmatic LUX E20L is a premium 1:1 contra-angle handpiece with integrated glass rod optics (25,000 Lux), designed for optimal precision and comfort in restorative treatments. It features ceramic-ground ball bearings and a push-button chuck for safe and efficient bur change.
🔍 Key features
-
1:1 gear ratio – direct transmission control at low speed (up to 40,000 rpm)
-
LED optics with glass rod – up to 25,000 Lux for optimal lighting without heat
-
Push-button chuck (30 N retention) – safe and quick drill clamping without tools
-
Ceramic ball bearings – low friction, quiet operation (~57 dB) and long life
-
EXPERTgrip surface & dent resistant head – non-slip and easy to clean
-
Internal spray & replaceable microfilter – ensures effective cooling and hygiene
-
Autoclavable & thermodisinfectable – up to 135 °C for maximum hygiene
⚙️ Specification table
Property | Specification |
---|---|
Gear ratio | 1:1 |
Max speed | 40,000 rpm (electric), 20,000 rpm (air) |
Lumens | 25,000 Lux via glass rod optics |
Chuck retention | Up to 30N |
Sound level | Approximately 57 dB(A) |
Spray | Internal 1‑port with microfilter |
Material/head | Stainless steel, dent-resistant |
Sterilization | Autoclavable/thermodisinfection ≤ 135 °C |
Coupling type | KaVo INTRAmatic LUX (E‑type) |
Surface | EXPERTgrip™ |
🎯 Benefits
-
Great access & clarity – small head and powerful light enable effective treatment in tight areas
-
Long-lasting & economical – ceramic bearing and robust components ensure low maintenance
-
Hygienic operation – anti-reflux, spray filter and thermal disinfectability promote clinical cleanliness
-
User-friendly design – push-button chuck and ergonomic handle increase workflow and comfort of use
✅ Short conclusion
The KaVo EXPERTmatic LUX E20L is a top choice for low-speed restoration, polishing and preparation. With its combined focus on precision, visibility and durability, it is a solid instrument in any modern dental practice.
Share
Specifications
Specifications
- Package size: 1
- Drill type: Carbide / rose drill
- Drill diameter in mm: 2.35
- RPM: 40000
- Item number: 1,007,5540
