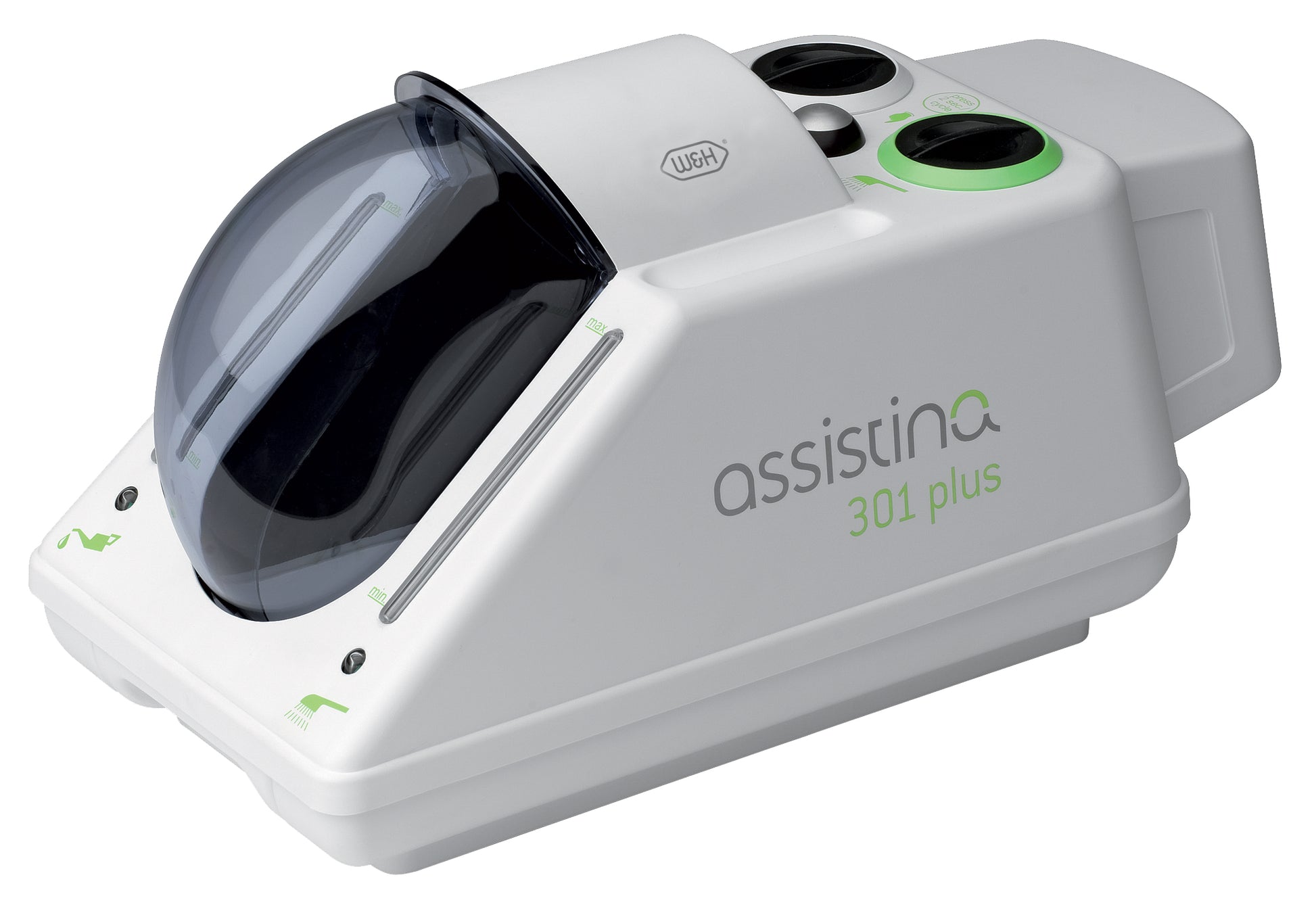

W&H Assistina 301 Plus

🔧 Technical specifications:

• Cycle time : ~35 seconds per maintenance cycle

• Tank capacity :

  • Service oil: 250 ml (for approx. 3,500 cycles)

  • Cleaning fluid: 250 ml (for approx. 2,500 cycles)

• Air pressure : 4–10 bar via automatic pressure regulator

• Air consumption : Approx. 60 Nl/min

• Size & weight : 223 × 190 × 415 mm, approximately 2.7 kg

• Noise level : Max. 63 dB

• Connection : Compressor air with quick coupling (6×4 mm or 1/8″ thread)
